Installing a roller blind is a straightforward job for most windows. The process takes around 15 to 30 minutes per blind once you have the right tools and understand where each component goes.
This guide covers bracket placement, fitting for both inside and outside mount, adjustments for common issues, and what to check before you start.
Check the wall type before drilling. Plasterboard requires hollow wall anchors unless you are drilling into a stud. Masonry and brick require masonry drill bits and plugs. Timber frames accept standard wood screws without plugs.
Inside mount brackets sit inside the window recess, fixed to the top of the frame. The blind drops inside the opening and the sill remains visible.
Outside mount brackets fix to the wall or frame face above the window. The blind covers the full opening from outside the recess.
The mount type was decided when you ordered. Your blind was made to the corresponding dimensions, so the installation method must match the order.
Choosing the right position for your brackets is where most installation errors begin. Refer to the guide on mounting brackets for roller blinds if you are uncertain which bracket type suits your window frame or wall surface.

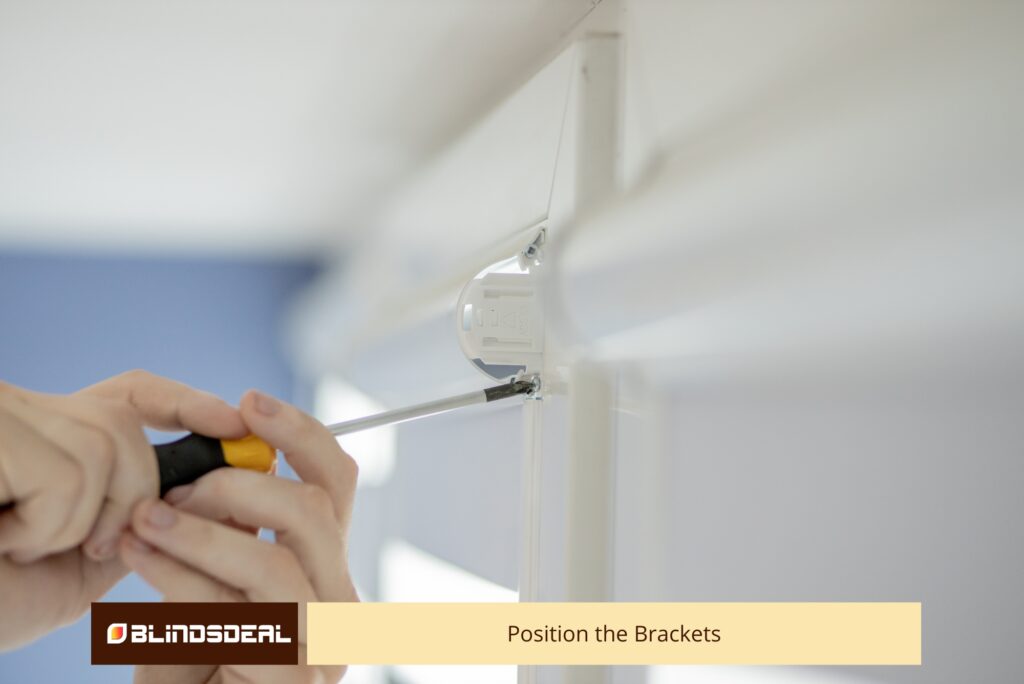

Hold the first bracket against the top inside corner of the recess, flush with the face of the frame. Mark the screw holes with a pencil. Repeat on the opposite side. Use a ruler to confirm both brackets sit at the same depth from the face of the frame so the headrail hangs level.
Measure up from the top of the window frame by the distance specified in your installation notes, typically 50mm to 70mm. Mark the first bracket position. Use a spirit level or measure down from the ceiling at both ends to confirm the two bracket positions are at the same height before marking.
An unlevel outside mount is the most common installation error and one of the hardest to fix after drilling.
For wider blinds over 1200mm, a centre support bracket may be included. Position it midway between the two end brackets at the same height.
Drill pilot holes at the marked positions. Insert wall plugs if required for your surface type. Fix each bracket with the supplied screws. Do not fully tighten until both brackets are in place and you have confirmed they are level with each other.
Once level is confirmed, tighten all screws fully. The bracket should not move or flex when you apply moderate hand pressure.
Quick reference: wall surface and fixings
| Wall surface | Drill bit | Fixing required |
|---|---|---|
| Plasterboard (into stud) | Standard timber bit | Wood screw, no plug |
| Plasterboard (no stud) | Standard bit | Hollow wall anchor |
| Masonry or brick | Masonry bit | Masonry plug and screw |
| Timber frame | Standard timber bit | Wood screw, no plug |
Roller blinds use a clip or socket mechanism at each end of the headrail. One end takes the chain mechanism, the other is a fixed pin.
Hold the headrail at a slight angle and locate the pin end into the fixed bracket first. Swing the chain end up and click it into the chain-side bracket. You should hear or feel a positive click. Give the headrail a gentle pull to confirm it is seated. If it lifts out easily, check that the bracket is fully engaged.
All chain-operated blinds are supplied with a child safety tensioner. This is a small clip or bracket that anchors the bottom of the chain loop to the wall or frame, preventing the chain from forming a free-hanging loop.
Fix the tensioner to the wall beside the blind at a height that keeps the chain taut but still allows full operation. This is a required safety fitting, not optional.
Lower the blind fully by pulling the chain on the operating side. The fabric should travel smoothly without skewing to one side.
If the blind pulls noticeably to one side as it lowers, the brackets are not at the same height. Loosen the higher bracket and adjust down fractionally until the blind runs true.
Raise the blind back to the top. On a chain-operated blind, the fabric should roll up cleanly without bunching or riding off-centre on the tube.
Some roller blind configurations include end caps or a decorative fascia that clips over the headrail once installed. Fit these last, after confirming the blind operates correctly. Press them firmly into place until they click.
They are designed to be removable if you need to adjust or remove the blind later.
The brackets are not at the same height. Lower the blind fully so the skew is visible, then loosen the higher bracket and shift it down fractionally. Retighten and test again. Even a 2mm to 3mm height difference between brackets can cause noticeable tracking problems on wider blinds.
The pin end and chain end must be inserted in the correct order. Locate the fixed pin end first, then swing the chain end up into the chain-side bracket. If the headrail still does not seat, check whether the bracket mouth is fully open.
Some bracket designs have a locking tab that needs to be pushed back before the headrail can be inserted.
A chain that slips freely without holding the blind in position usually means the clutch mechanism inside the headrail is not engaging. Confirm the headrail is fully seated in both brackets with no lateral play. If the headrail is correctly seated and the chain still slips, the clutch may be faulty and the blind should be returned for assessment before continued use.
Blinds wider than 1800mm are heavier and place more load on the end brackets. Confirm the centre support bracket is fitted before testing operation. On masonry walls, use a masonry plug rated for the load. On plasterboard, centre support brackets should go into a stud where possible.
Use this before you consider the job complete:
Roller blinds require minimal maintenance once installed. A wipe-down of the fabric with a dry cloth every few weeks and an occasional check that the bracket screws remain tight is all that is needed for most installations.
For help with measurements before ordering, the measuring guide covers inside and outside mount dimensions, and the advice on how to measure for blinds walks through the specific steps for each mount type.
All orders are manufactured and shipped free across Australia, including Penrith and the surrounding Western Sydney area.
Around 15 to 30 minutes per blind once you have the right tools and understand where each component goes.
It depends on the surface. Plasterboard needs hollow wall anchors unless you hit a stud, masonry and brick need masonry plugs and bits, and timber frames accept standard wood screws without plugs.
The brackets are not at the same height. Loosen the higher bracket and adjust it down fractionally until the blind runs true.
